Fixing opacity problems on fonts with overlapping glyphs

By: Benjamin Kroll | September 11, 2019 | css, and fonts

Certain fonts feature glyphs that intentionally overlap.

This largely applies to "brush" or "script" type fonts where the overlap is intentional to achieve the effect of connected letters. Using a web font like that becomes a problem as soon as you try to apply opacity to text using the font.

In our example we'll look at the font Moonstone, a "handwritten brush font".

Applying opacity either via a CSS rbga() colour value or an opacity declaration on the content's parent element does not work as expected.

The problem

The browser applies opacity to each glyph individually.

The opacity for overlapping parts ends up with double the intended value.

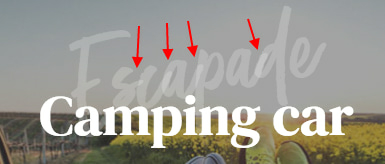

semi transparent brush font showing glyph overlap
<h5 class="card-title"><span class="faded">Escapade</span>Camping car</h5>

.faded {
    font-family: "Moonstone-Regular";
    position: absolute;
    top: -.9em;
    font-size: 1.8em;
    opacity: .2;
    left: 50%;
    transform: rotate(-10deg) translateX(-50%);
    font-style: normal;
}

A solution

To solve the issue, an additional wrapper element is needed to which the opacity is applied. This will trigger the browser to render the child element opacity as expected.

The font face declaration has to remain on the child element of the wrapper for this to work.

semi transparent brush font showing without glyph overlap issues
<h5 class="card-title"><span class="faded"><em>Escapade</em></span>Camping car</h5>

.faded {
    opacity: .2;
}
.faded em {
    font-family: "Moonstone-Regular";
    position: absolute;
    top: -.9em;
    font-size: 1.8em;
    left: 50%;
    transform: rotate(-10deg) translateX(-50%);
    font-style: normal;
}
